THE MC6 MKII

FULLY PROGRAMMABLE MIDI CONTROLLER

The MC6 is a fully programmable midi controller, capable of sending up to 16 different MIDI messages per switch.



MIDI messages can be sent simultaneously, or triggered separately by performing different actions. This gives you precise and customizable control with just one switch.



With 30 banks of 6 switches in a compact low-profile chassis, the MC6 sits comfortably on any pedalboard, meeting the needs of even the most demanding musician.

Show More

CONTROL ANYTHING WITH MIDI

Click here for the MC6 MkII manual.

FEATURES

FULLY PROGRAMMABLE

30 banks of 12 preset slots, and each preset capable of sending up to 16 different MIDI messages

MULTI-USE INPUTS

Connect expression pedals or aux switches to enable access to more presets and functions

EASY EDITING

Easily program on the MC6 itself, or with the PC/Mac Editor. Programming the MC6 has never been easier

SUPER COMPACT

Allows for easy integration into pedalboards and rigs.

145mm x 95mm x 45mm

USB CLASS COMPLIANT

With MIDI over USB, control your favourite DAWs and music software like Ableton Live and Logic Pro

POWER OPTIONS

Can be powered by USB buss power, MIDI phantom power or standard 9-12v DC power supply

Compare the MC series of MIDI controllers here

ACTION-BASED CONTROL

Send different messages depending on what action you perform.

Press, Release, Double Tap, Long Press and more.

Click here for the full list of actions available.

MIDI MESSAGE TYPES

Each switch can send up to 16 different MIDI messages through 16 different MIDI channels.



Choose from a wide range of useful MIDI message types including PC, CC, Note on/off, SysEx, MIDI Clock (preset or tap), Preset Scroll, Bank Up/Down, Toggle Page and more.

Click here for the full list of MIDI message types available.

CONNECTIVITY

  • MIDI IN



    Receive MIDI messages

    to control the MC6, or

    relay messages through the MIDI OUT port.

  • MIDI OUT

    Send MIDI messages generated by the MC6, and relay messages received from the MIDI IN port. Phantom power the MC6 via MIDI pins 6 & 7.

  • USB

    Send MIDI to your PC,

    Mac or tablet

    Receive PC, CC and Note messages, and relay them through the 5-pin

    and 1/4 inch MIDI outputs

  • 9VDC IN

    Power the MC6 with a

    9-12VDC power supply. Requires at least 120mA.

    Can also be buss powered via USB the USB port

  • EXPRESSION INPUTS



    Connect expression pedals to send sweeping CC messages, or aux switches (up to 6) for additional presets.

MORNINGSTAR DEVICE

EDITOR + BACKUP

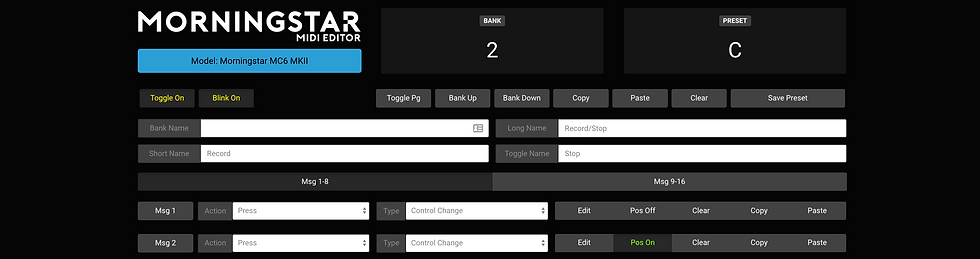

While you can program your switches on the MC6 itself, it also comes with a free and intuitive desktop editor to make programming even faster.

It allows you to view all your preset settings on one screen, quickly make changes and easily name your switches.

You can also backup individual banks for the entire controller to your computer so you never lose your presets and settings.

Click here to watch the Editor in action

Click here to access the Editor.

NEW TO MIDI?

Whether you are new to MIDI or a seasoned expert, we've got you covered

with responsive and extensive support.

Talk to us here.
